How does a dewatering screw press work?

A dewatering screw press is a mechanical device used to separate water (or other liquids) from solid materials, typically in the context of sludge treatment, wastewater treatment, or other processes involving the removal of moisture from solids. The device works through a combination of mechanical compression, gravity, and sometimes additional processes to effectively extract water and reduce the volume of the solid material.

Here's how it works in basic steps:
Feed Slurry Introduction:
The material to be dewatered, such as sludge, slurry, or a mixture of solid and liquid waste, is first fed into the screw press. The feed material enters at the large end of the screw press, typically through a hopper or a conveyor.

Screw Rotation and Compression:
Inside the press, there is a rotating helical screw (hence the name "screw press"). As the screw turns, it moves the feed material through a cylindrical, tapered screen or mesh.
As the material moves through the screw press, the space between the screw and the screen gets progressively smaller, which compresses the material, squeezing out the liquid (e.g., water, sludge liquor).

Filtration:
The cylindrical screen is designed to allow the liquid to pass through while retaining the solid material. This separation happens due to the combination of pressure exerted by the screw and the filtration capacity of the mesh or screen.
The liquid, or filtrate, exits through openings in the screen, and can be collected in a separate container or drain.

Concentration of Solids:
As the screw presses the material, the solid particles become more concentrated, forming a compact cake at the discharge end of the press. This cake is typically much drier than the incoming feed, depending on the operational parameters (e.g., screw speed, pressure).

Discharge of Dewatered Solids:
The dewatered cake is then discharged from the small end of the screw press. This can be done via gravity or an additional mechanical mechanism like a conveyor.

Collection of Liquid (Filtrate):
The separated liquid, or filtrate, is collected through the perforations in the screen and directed into a drain or collection system. Depending on the application, this liquid may be further treated or disposed of.

Key Features:
Low Energy Consumption: Dewatering screw presses are energy-efficient compared to other dewatering methods like centrifuges.
Compact Design: They take up relatively little space, making them ideal for applications where space is limited.
Continuous Operation: They can operate continuously, processing large volumes of material without requiring frequent stopping for maintenance.
Flexible Processing: Dewatering screw presses are versatile and can handle a wide variety of feed materials, from municipal sludge to industrial waste.

Common Applications:
Wastewater Treatment: In municipal or industrial wastewater treatment plants, where dewatering of sludge is necessary before further processing or disposal.
Agricultural Waste: In the treatment of animal manure or other agricultural by-products, where separating liquids and solids is required.
Food Processing: To separate liquids from food waste or other processing residuals.
Paper and Pulp Industry: For dewatering sludge or residues from paper production processes.

Dewatering screw press is an efficient and relatively low-maintenance solution for dewatering various materials, especially when large volumes of liquid need to be separated from solid waste.

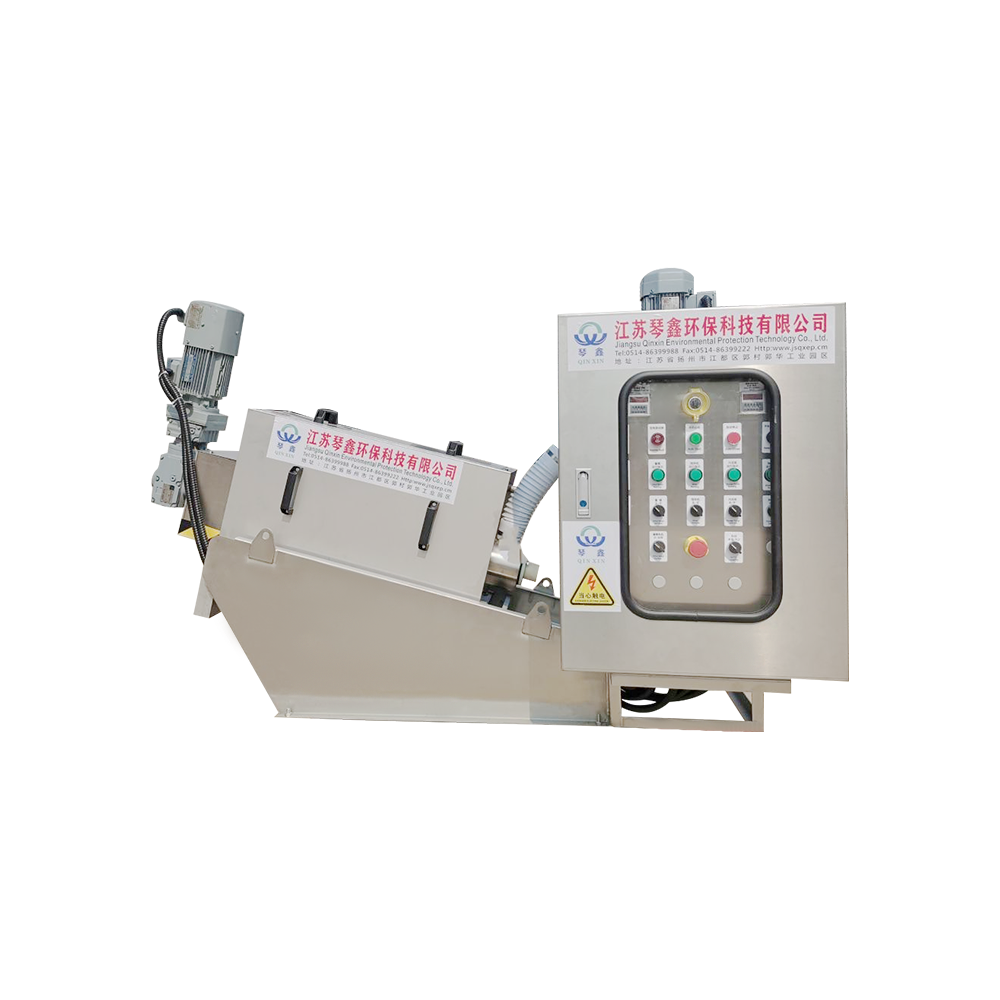

Industrial Fully Automatic Spiral Screw Sludge Dewatering Machine QXDL-131
